15m pneumatic telescopic mast 400kg payloads NR-3.4-15-400N-7S-160-316

Name: 15m pneumatic telescopic mast 400kg payloads NR3415400N7S160316
Brand: Nrentech
Price: 10000 USD

China 15m pneumatic telescopic mast 400kg payloads NR-3.4-15-400N-7S-160-316 wholesale

Brand Name : Nrentech

Model Number : NR-3.4-15-400N-7S-160-316

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD 10000/unit FOB Shanghai

Payment Terms : T/T

Supply Ability : 200 units per month

Delivery Time : 30 days

Packaging Details : Standard Plywood Cases, Free fumigation

Extended Height : 15m

Closed height : 3.4m

Vertical Payloads : 400kg @ 0.25Mpa/36PSI

Collar type : non-lockable type (automatic extension and retraction)

Number of sections : 7

Materials : aluminum alloy 6063T5

Mast weight : 380kg

Contact Now

15m Pneumatic Telescopic Mast-400kg Payloads-3.4m closed height

15m Pneumatic Telescopic Mast-400kg payloads
3.4m closed height

1> Item #: NR-3.4-15-400N-7S-160-316
2> Extended Height: 15m
3> Retracted height: 3.4m
4> Payloads: 400kg @0.25Mpa/26 PSI
5> Collar type: non-lockable type, suitable for automatic extension /retraction for remote control
6> Working temperature:-15~85 ℃
7> Number of sections: 7 sections
8> Section dia. 140mm~316mm
9> Collar style: non-locking collar
10> Materials: aluminum alloy 6063T5
11> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve panel, 4x4 guying ropes/wires mounting plate.
12> Mast Weight: 380kg approx.

Optional accessories:
Electric air compressor
steel side mounting bracket
ground mounting quadpod bracket
remote control kit
guying rope kits with mounting spikes

Leading time: 30 days
last updated on 2024-10-15

15m Non-Lockable Pneumatic Telescopic Mast-400kg Payload
NR-3.3-15-400N-7S-160-316

Extended Height	:	15	m	49.2	ft
Retracted Height	:	3.4	m	11.2	ft
Vertical Payload	:	400	kg	880	lb
Working air pressure	:	0.25	Mpa	37	PSI
Collar Type	:	Non-Locking (Automatic Extention, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	160	mm	6.3	in
Basement section diameter	:	316	mm	12.4	in
Mast Weight	:	378	kg	832	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual

Optional Accessories	:	Electric air compressor			AC220~240V/50hz/60Hz
		Guying Rope Kits			4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
		Side Mounting Bracket			Steel Materials
		Ground mounting Quadpod			Stainless Materials
		Rotation Basement
		Remote control kit			DC12V
data update on 20240928

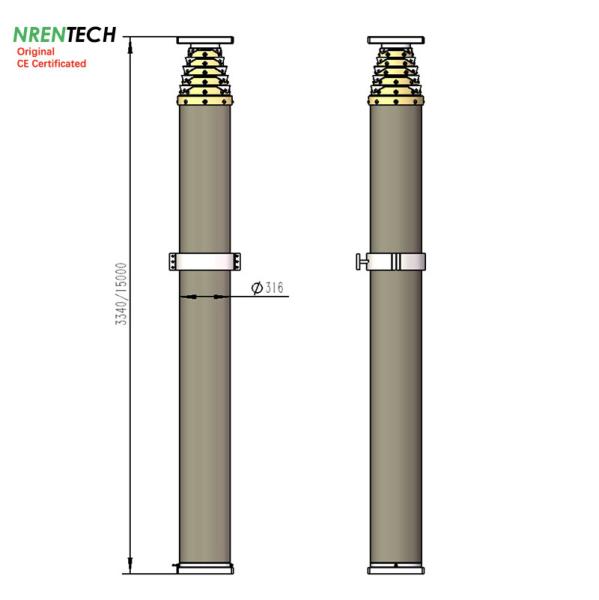

15m pneumatic telescopic mast 400kg payloads NR-3.4-15-400N-7S-160-316 Images
